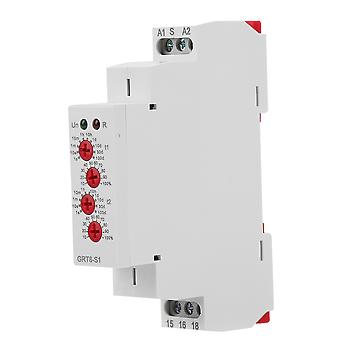

Features Separation of ON and OFF: The time settings of delay ON and OFF are separated, and different delay times can be set. The cycle timer relay is mainly set by the knob, the setting accuracy is 10%, and the repetition accuracy is 0.2%. Wide Delay Range: The mini asymmetric loop timer has an ultra-wide delay time range, which can be set from 0.1 seconds to 100 days (10 time ranges). LED Indicator: Delay off time relay to switch different working modes by shorting S-A1. The working status of the relay is indicated by the LED indicator, which is very convenient and fast. Easy Installation: This cycle timer relay is small and lightweight, and can be installed on a 35mm DIN rail. Electrical components that support this standard can be easily clipped on the rail without screws, and maintenance is also very convenient. Wide Range Of Applications: This GRT8-S1 time delay relay has a wide range of applications and is suitable for various periodic delay control occasions, such as providing periodic power-on, lighting control and heating control for circuits. Specification: Model: GRT8-S1 Rated supply voltage: AC 230V(50-60Hz) Power consumption: AC max.6VA/1.3W Delay time range: 0.1s-100days, NO, NC  Setting method: knob Setting accuracy: 10% Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20℃ Output contact: 1 x SPDT, 16A/AC1 Minimum switching power: 500mW Power indicator: Green LED Output relay indication: Red LED Mechanical life: 1x107 Electrical life: 1x106 Reset time: Max 200ms Working temperature: -20℃~55℃ Storage temperature: -35℃~75℃ Mounting method: 35mm DIN rail Protection grade: IP20 Wiring capability: 1x2.5mm2 /  2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Package weight: Approx. 75g/2.6oz   Package List: 1 * Cycle Timer Relay   Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding. Package List
