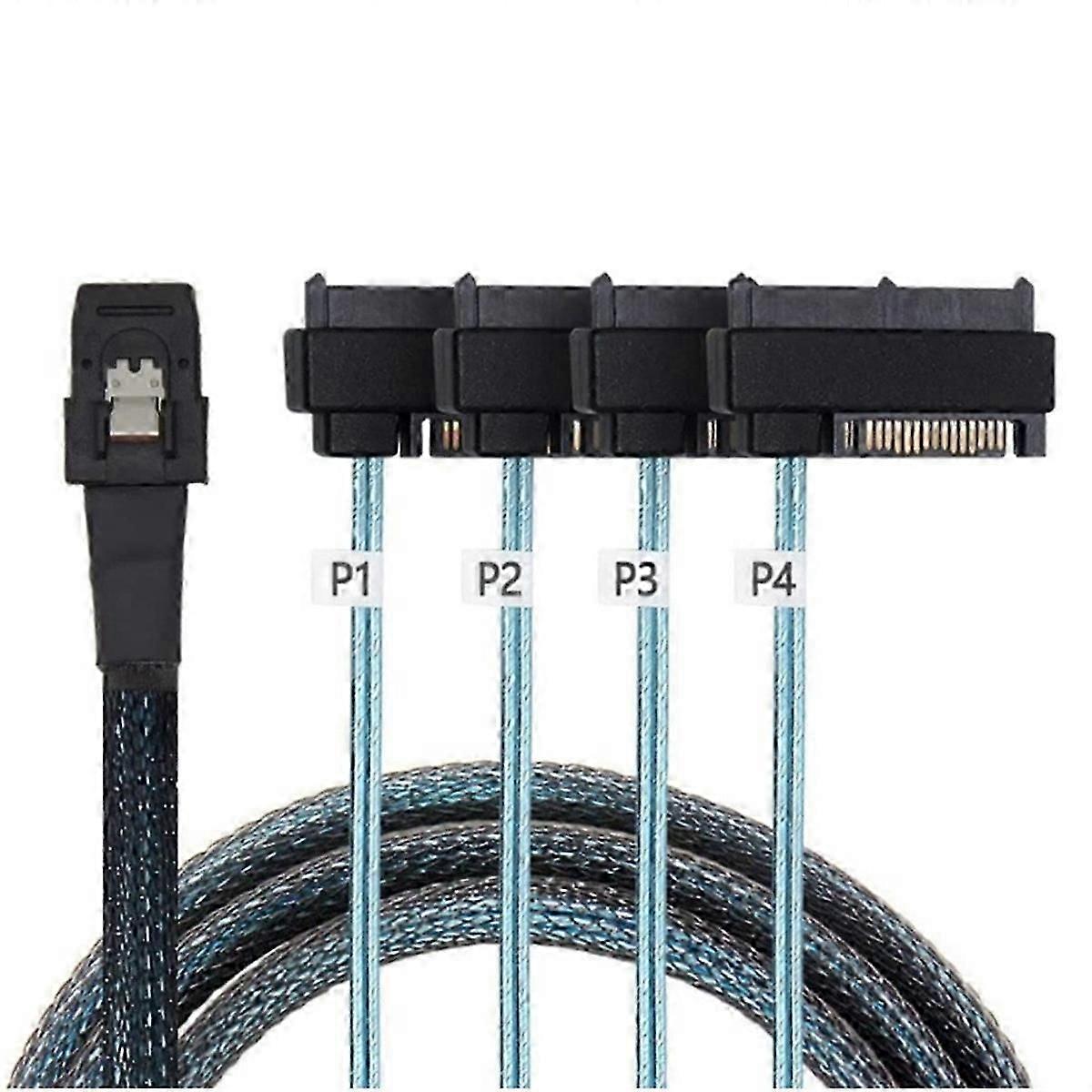

Series: Mini SAS Wire Size: 30AWG, Tinned Copper, OD: 0.9x2.3,MM Lock to Mating Part: With Latch Plating: Au 30u' min over Ni 100u' min Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0 Applications: Data/Communications RAID (Redundant Array of Independent Disks) Workstations Rack Mount Server Servers Storage Rack mission rate 12gbps. Specification meet SAS 4.0. Mechanical Performance Mating Force and Unmating Force Condition:EIA 364-13. Insert and extract at a speed of 25mm/minute. Mating Force: 55 N maximum for Mini SAS. Unmating Force: 49 N maximum for Mini SAS. Mating Force: 45 N maximum for SATA connector. Unmating Force: 10 N maximum for SATA connector. Electrical Performance: Contact Current rating - 0.5 amps maximum per pin when mated. Voltage rating - 30vac for contact when mated or not. Contact residence - 30mohm Max. Initial, 15mohm maximum after stress test. The Dielectric withstanding Voltage - 500 vac for 1 minute without pause. Insulation Resistance - 1000 mohm minimum. Signal Integrity: Mated Connector Impedance: 100 ohm 15% Absolute Cable Impermeability: 100 ohm 10% Pair Cable Matching: 5 ohm Common Mode Impedance: 25 to 40 ohms Insertion Loss: -6 DB maximum up to 4.5 GHz Crosstalk: -26 DB up to 6 GHz Colour:As Shown Material:Plasticand Braided Wire Cable Length:1m/0.5m Package Contents: 1 x Mini Sas Sff-8087 To 4 Sff-8482 Cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is 1-3cm.
