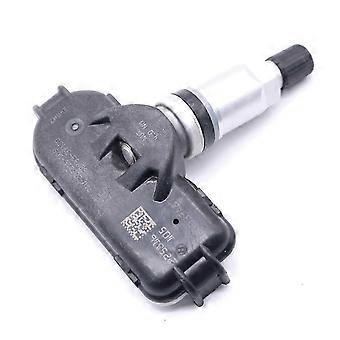

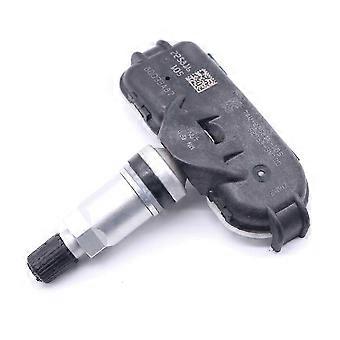

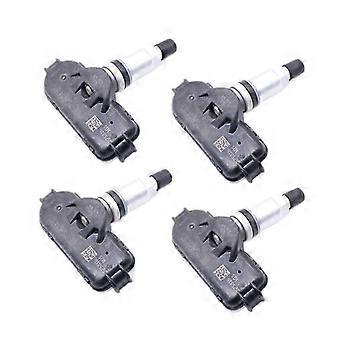

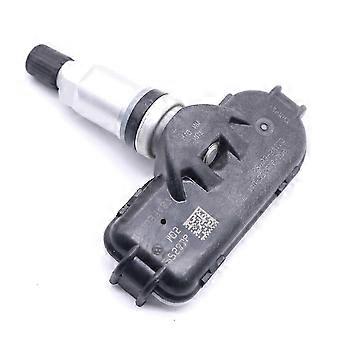

Usage Tips:MPREHENSIVE VEHICLE COVERAGE Installation Process 1. Loosen the tire: Remove the valve cap and core and deflate the tire. 2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation . Insert the tire tool and lift the tire bead onto the mounting to the . 3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve. 4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw. 5. Mount the tire: Place the tire on the rim, making sure that the valve the separation at an angle of 180 degrees. Mount the tire over the rim. SPECIFICATION : Replace For Part Number:529333V100O Colour:Black Material:ABS Size:7.5x6.5x3.5cm Package Contents: 1* Tire Pressure Sensor Note1: [No sensor programming Required] : The Tire Pressure Sensor is and come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool or "re-learning". Simplified Relearn : AUTO Relearn Installation of TPMS is recommended to be performed only by trained . Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
